Smartlink IR remote receiver
PRODUCTS
Specification
Technical Data
| Model | AGD-WBIRCCC1 | |
|---|---|---|
| Input | Voltage | 12…22.5V, DALI Bus |
| Current | < 3mA | |
| Receiver | IR-nm | 000 nm |
| Decoder | NEC IR | |
| Buttons | 8 buttons | |
| Protection | Isolation | > 6mm |
| Environment | Temperature | Ta: -30...+50℃, Tc: 55℃ |
| Humidity | 20...95% | |
| Storage | -40...+80℃, 10...95% | |
| Dimming | DALI | DALI-2 IEC 62386 101, 103, 301 |
| App Controller | Artilect SmartLink Engine for buttons | |
| Others | Dimension | 120*46*30mm |
| Weight | 30g | |

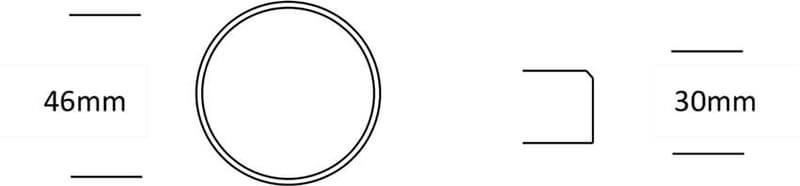

Dimension
Installation

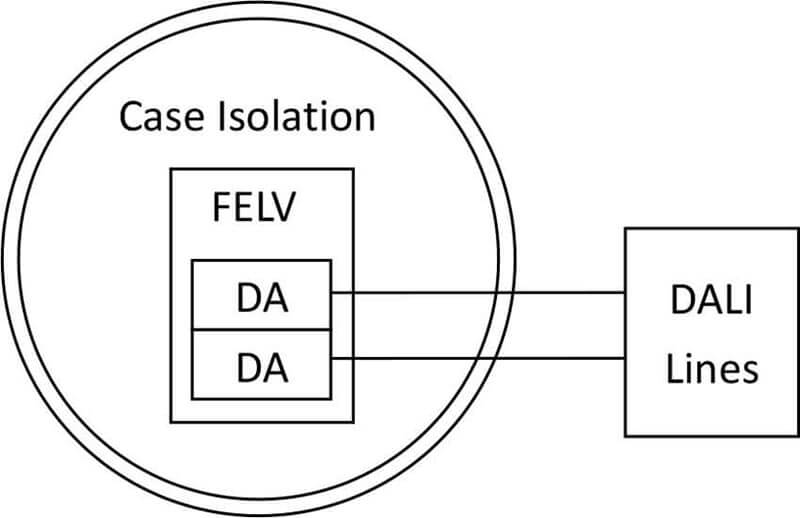

Wiring and circuit diagram
- DA/DA are wires for DALI bus lines. Connect to DALI bus only.
- Please only use DALI-2 certified bus power supplies, and follow the manual of DALI bus installation.
- DALI bus lines are cataloged FELV, and this product has designed with 6mm isolation creeping distance between circuit and gaps.
- Please keep the join of cables away from human environment. Double enforcement cables are recommended.

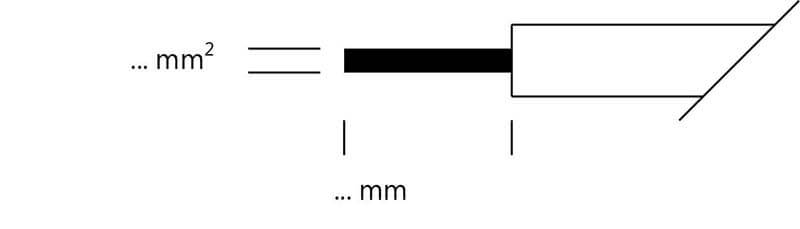

Wiring cable and cross section
The supplied cables are:
Hot plug-in
You may plug in the device to DALI bus while power-on. However, DALI bus is cataloged as FELV, a good protection glove is strongly advised.
Electrical values
Current consumption vs Voltage.
It is fixed to 2mA, and take 3mA for calculation.
Functions
Software
This driver is supported by SmartLink configuration tool. You can use SmartLink tool to download and program its parameters such as its application controller.
Others
Warning / Caution !!
- Risk of electrical shock and energy hazard. All failure should be examined by a qualified technician. Please do not remove the case of the device!
- The openings should be protected from foreign objects or dripping liquids.
- Please do not install the device in places with high ambient temperature or close to fire source. Please refer to the specifications about the maximum ambient temperature limitations.
- If the external flexible cable or cord of this switching power supply is damaged, it shall be exclusively replaced by the manufacturer or his service agent or a similar qualified person in order to avoid a hazard.
